Ephesus 3 Brush Automatic Car Wash System
Automatic Car Washing Machine equipped with a Brush Swing system to effortlessly clean a wide range of vehicles.
- Door to door shipping
- Free installation
- 6 months warranty
Description

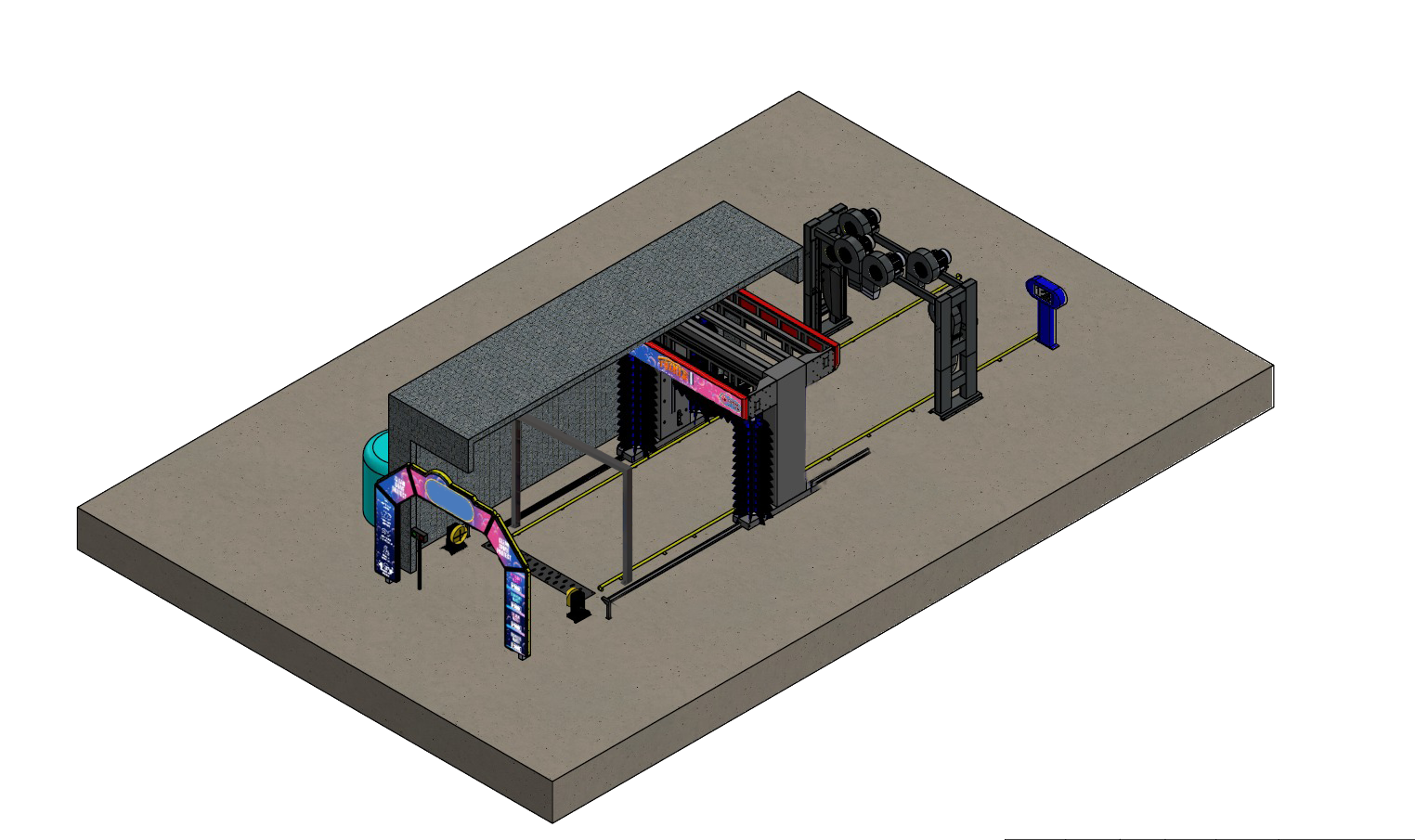

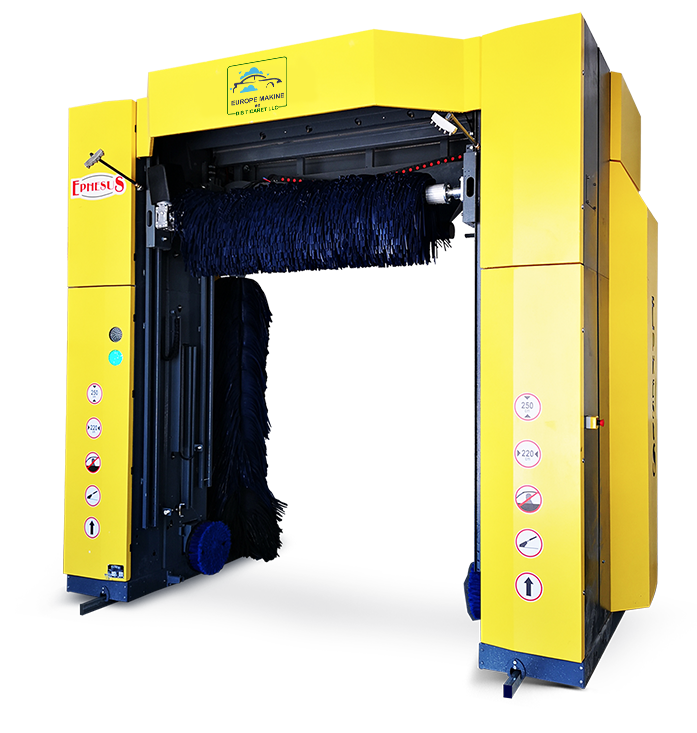

Europe Makine – Ephesus Automatic Car Washing Machine equipped with a Brush Swing system. It is designed to effortlessly clean a wide range of vehicles, including passenger cars, vans, jeeps, and minibuses, with dimensions of up to 3.00 meters in height and 2.20 meters. This advanced machine features 2 vertical and 1 horizontal brush systems.
The vertical brush system operates seamlessly with a swing mechanism, meticulously designed for various vehicle surfaces, utilizing an independent reciprocating bearing shaft system. For precise washing, the Horizontal Brush incorporates a Digital Power Control Reader alongside a safety roller.
Additionally, this machine boasts the capability to foam vehicles during the washing process. All managed automatically under PLC computer control. Renowned for its user-friendly interface and minimal operating and maintenance costs, it stands as one of our most sought-after models. Its modular design allows for easy integration of optional equipment according to specific preferences.
Ephesus Standard Accessories
Included in the Ephesus are standard accessories such as the Digital Power Control (Print Control), Horizontal Brush System with Inverter System for speed adjustment, Bridge execution motors, Chemical Dosing pump for the Foam Laying System, Pedestal operator panel, and Decorative polyester Side and Top Forehead Dressing.
Further enhancing its functionality are features like Soft Start and Soft Stop, an Emergency Stop Button, and Decorative Water Shields with transparent window compartments for a smooth stop and take-off on all brushes. The addition of Numerator Directional pipes provides a clear indication of the number of washed vehicles, ensuring efficient tracking and management.

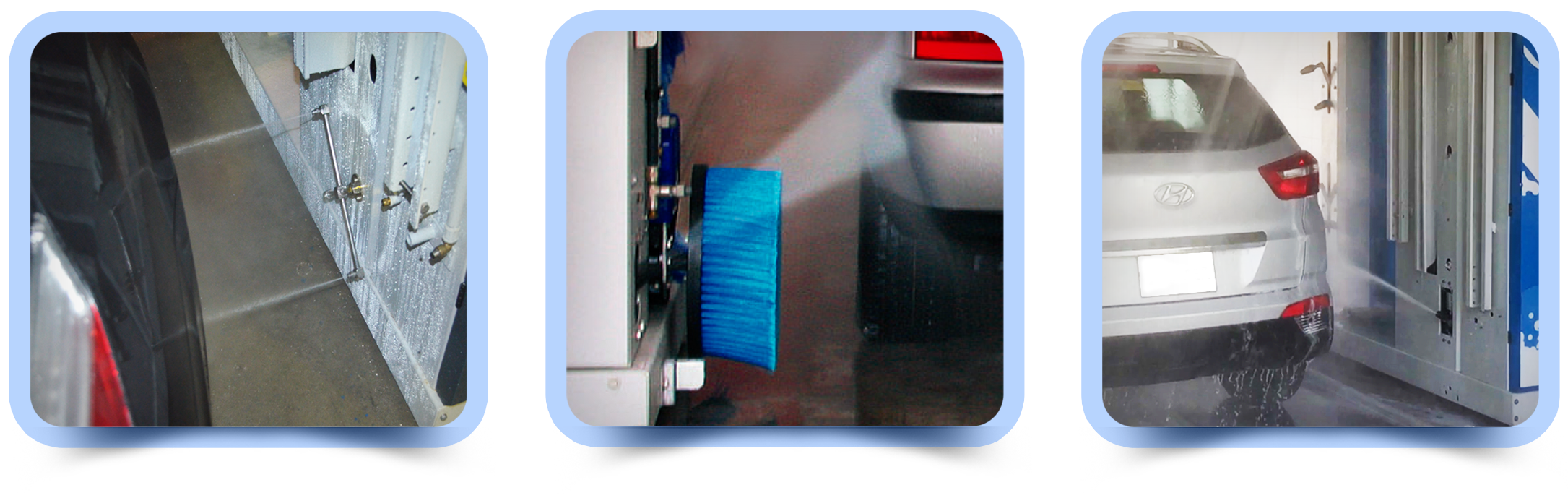

ROTARY NOZZLE- HIGH-PRESSURE SIDE SURFACE and RIM, WHEEL WASHER UNIT.
It is a washing robot that sprays water by rotating with its own pressure at a pressure of at least 70-100 bar to remove the heavy dirt layer from the sides and wheels of the vehicle. Technical Feature: The unit is built with steel construction and profiles, mounted on the main chassis, the washing distance is fixed according to the vehicle to be washed.
Water Spraying Method: The washing system for washing the recessed and protruding parts of vehicles consists of special V-jet nozzles placed on a plate that can spray water by rotating. Nozzles are mounted on automatic Turbo-Cleaner pressure registers that can rotate with water pressure. Nozzles can spray water at any angle according to the vehicle bodywork.
THE PROCESS OF LAYING VARNISH ON THE CAR
Water Spray Method: The v-jet mounted on the sleeves located on the pipes sprays water and chemicals onto the surface of vehicles at a certain angle and at a pressure of 4 bar with special nozzles. Water is supplied to the unit by the pump group.
The varnish is supplied to the water line by a special electric proportional dosing dosing pump. The polish dosing pump is a pump of Italian origin that operates automatically with an electric control system and can be adjusted to the desired dosage amount.
CHASSIS WASHING SYSTEM
The chassis washing system sprays water with a pressure of 7.5 Bar and cleans the thick layer of dirt under the vehicle.pressurized water sprayed with sequential nozzles that move automatically to the right and left provides effective cleaning.

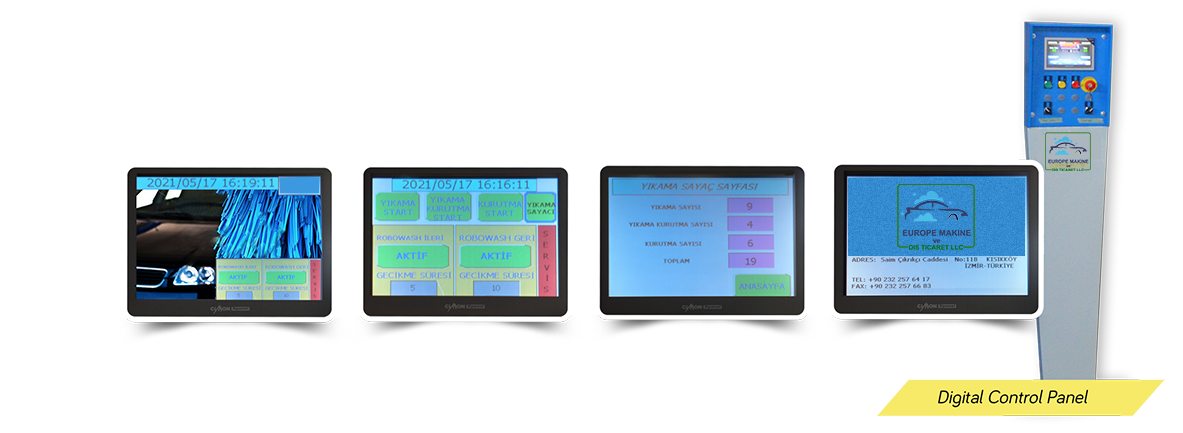

DIGITAL OPERATOR PANEL
DIGITAL OPERATOR PANEL Thanks to the numerators located in the screen, you can see how many vehicles are washed in which program, and if desired, this page can be encrypted by the operator. Ease of fault detection, signaling with address indication. 10 Different program forms with the ability to activate and activate optional equipment.
BRUSHES AND CAR SYSTEM
Brushes and car system; Overlapping system bidirectional upright brush unit Power control (digital power printing control) Precise and efficient washing of different types of vehicle surfaces is achieved with site brushes. It was created with a group of cars with a belt system for moving vertical brushes together in front of and behind the washed vehicle. The horizontal brush up and down movement accompanying this group was also created with the same system.
Ephesus Brush Car Washing Machine, All System Features and Data Table.
